Android Simple ListView with Search Functionality Example

Here you will get android simple listview with search functionality example.

Adding search functionality in listview helps users to find information in easy way. When user writes something in the textbox, the items in the list is filtered and an updated list of items is displayed.

Below example shows you how to implement this.



Android Simple ListView with Search Functionality Example

First of all create a new project with package name thecrazyprogrammer.androidexample. Now add following code in respective files.



activity_main.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
    android:layout_height="match_parent" tools:context=".MainActivity"
    android:orientation="vertical"
    android:layout_marginLeft="15dp"
    android:layout_marginRight="15dp"
    android:layout_marginTop="15dp"
    android:layout_marginBottom="15dp">

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/textBox"/>

    <ListView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/list"/>

</LinearLayout>



list_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent" android:layout_height="match_parent">
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/text"
        android:textSize="20dp"/>
</LinearLayout>



MainActivity.java

package thecrazyprogrammer.androidexample;

import android.app.Activity;
import android.os.Bundle;
import android.text.Editable;
import android.text.TextWatcher;
import android.widget.ArrayAdapter;
import android.widget.EditText;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends Activity {
    EditText textBox;
    TextView text;
    ListView list;
    String country[]={"India","USA","China","Australia","Japan","England","Nepal","Canada","Sri-Lanka","Russia"};
    ArrayAdapter adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        textBox=(EditText)findViewById(R.id.textBox);
        text=(TextView)findViewById(R.id.text);
        list=(ListView)findViewById(R.id.list);

        adapter=new ArrayAdapter(this,R.layout.list_item,R.id.text,country);
        list.setAdapter(adapter);


        textBox.addTextChangedListener(new TextWatcher() {
            @Override
            public void beforeTextChanged(CharSequence s, int start, int count, int after) {
                adapter.getFilter().filter(s);
            }

            @Override
            public void onTextChanged(CharSequence s, int start, int before, int count) {

            }

            @Override
            public void afterTextChanged(Editable s) {

            }
        });
    }
}

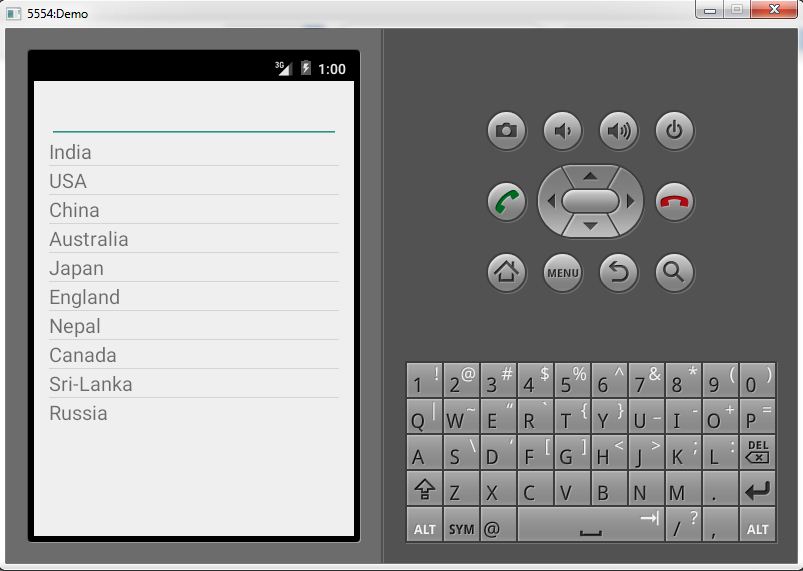

Output

Android Simple ListView with Search Functionality Example 1

Android Simple ListView with Search Functionality Example 2



The above code is self-explanatory, if still you are facing difficulty to understand then feel free to comment below.
